654 Air Cleaner was created by M Bailey
I decided to change the air cleaner on the 654 from an oiled brass wool type (good for stopping large rocks and small animals) to a paper type filter. The problem was there just isn't much room between the carb and hood. Ended up going this route with a B&S air cleaner assembly which took some modification to the carb flange and just barely fit in the required space but has a much larger filtration area.

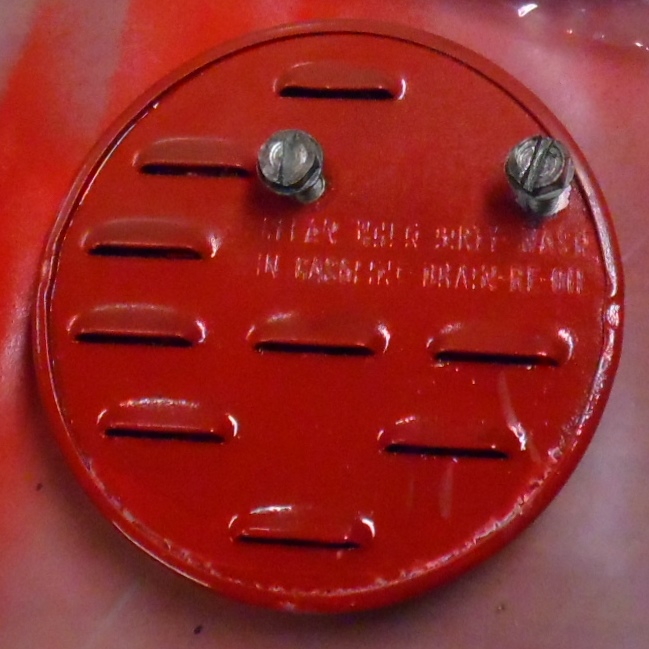

The old air cleaner which says "Clean when dirty wash in gasoline drain re-oil"

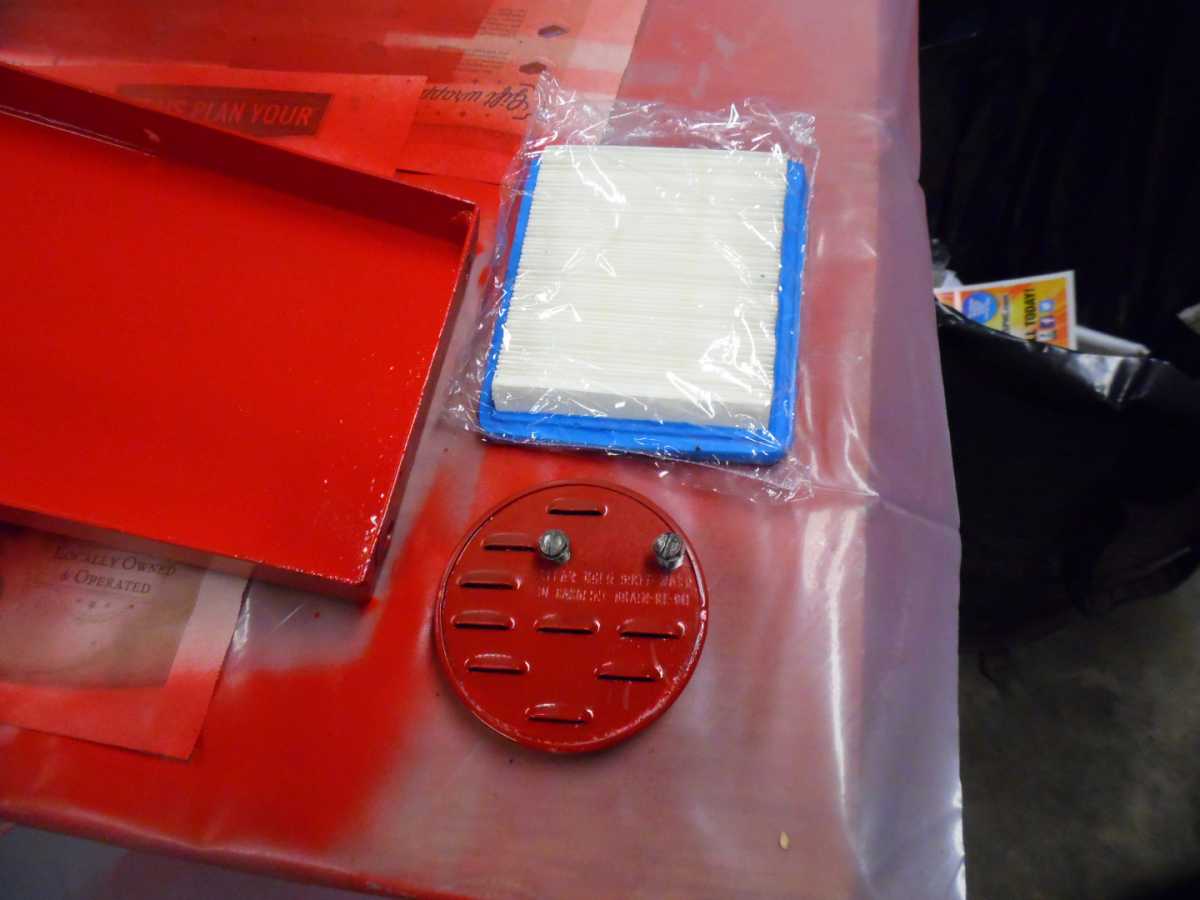

Old air cleaner and B&S filter comparison

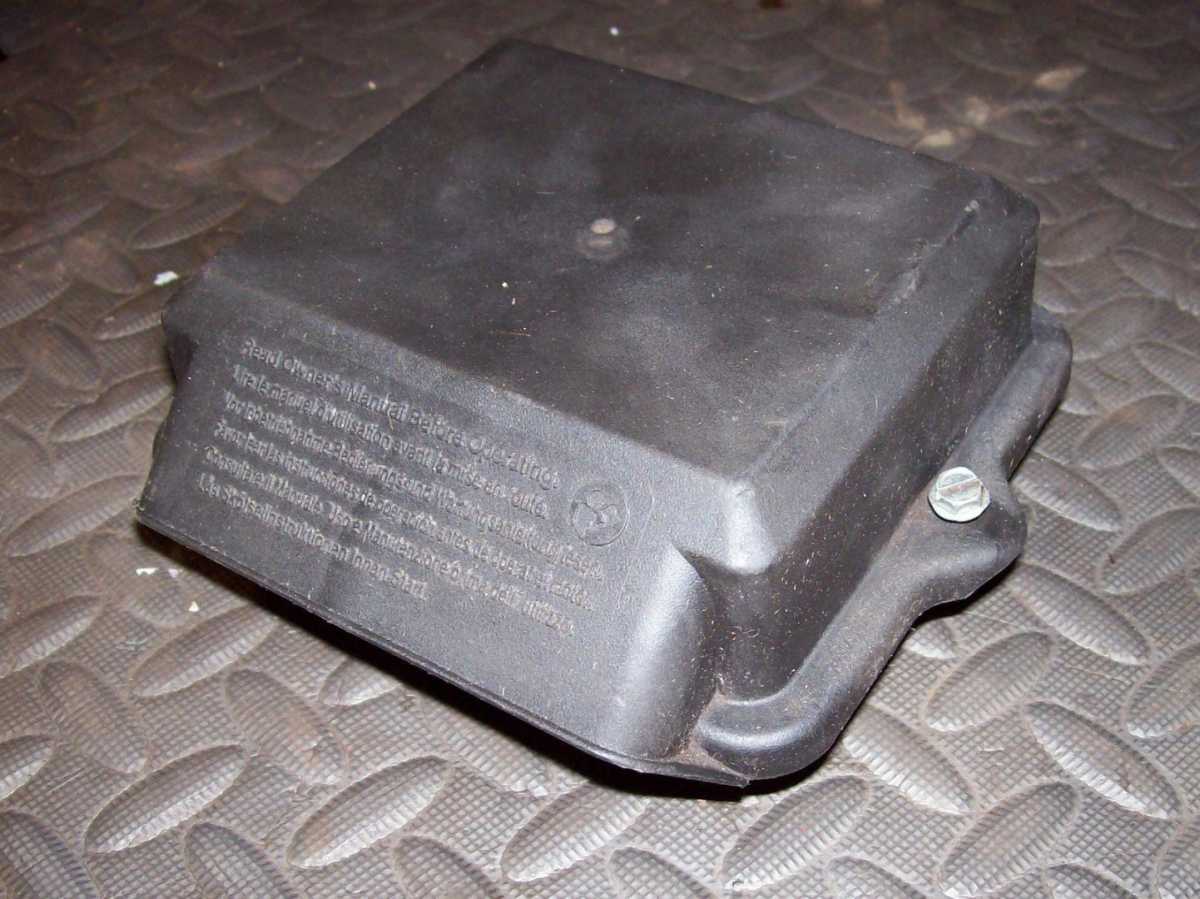

B&S assembly

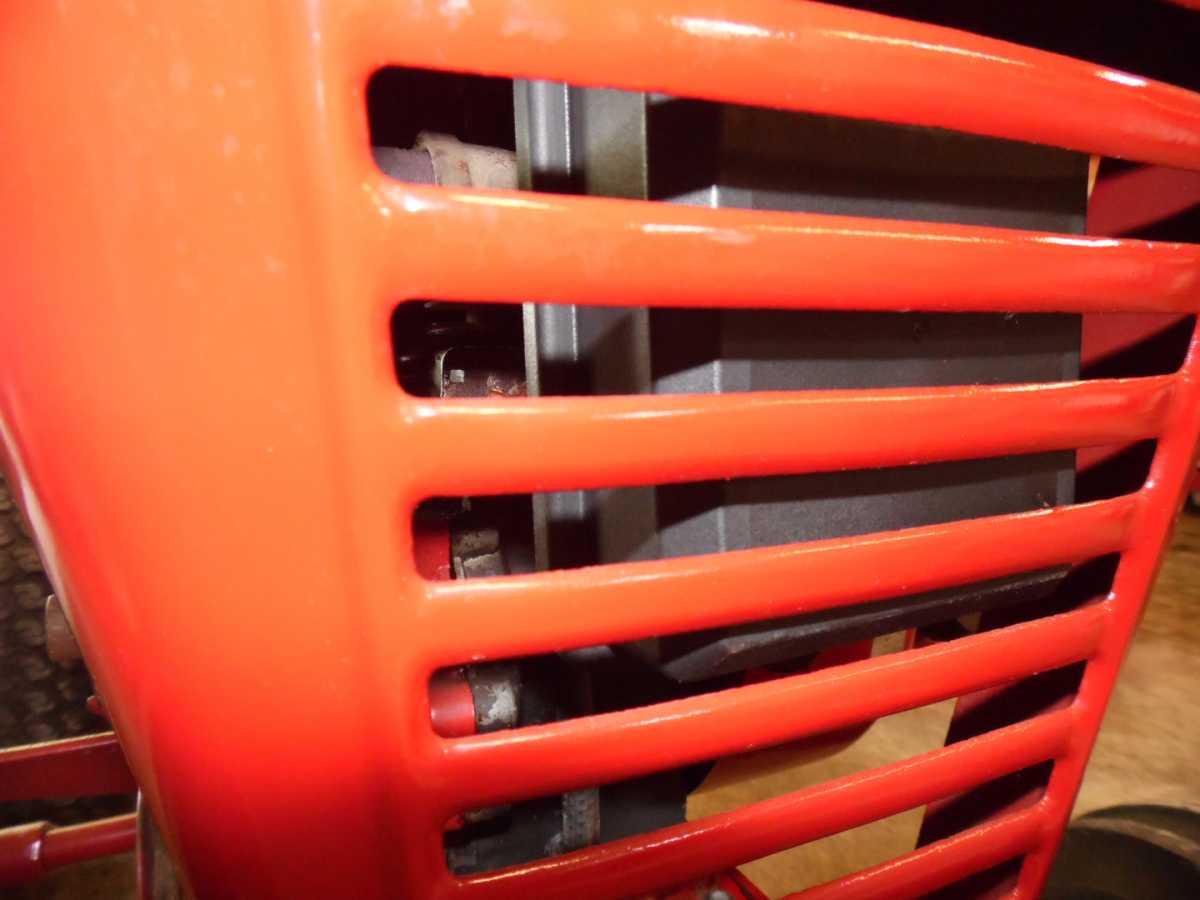

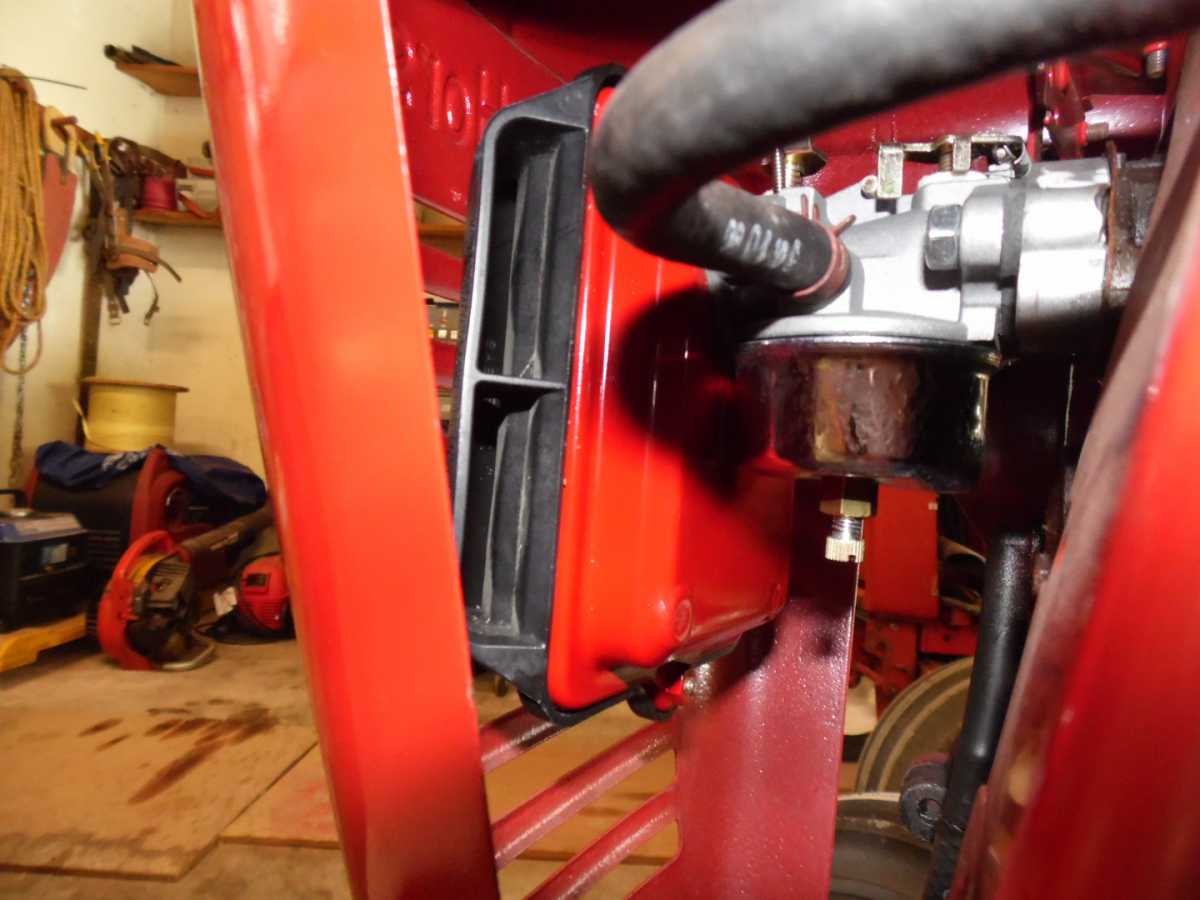

Installed views
The old air cleaner which says "Clean when dirty wash in gasoline drain re-oil"
Old air cleaner and B&S filter comparison
B&S assembly
Installed views
Major
"I refuse to join any club that would have me as a member." Groucho Marx
Last edit: 14 Jun 2015 15:41 by M Bailey.
Please Log in to join the conversation.
- GT 14
-
- Offline
- Super Mod - Supporter
-
Registered
14 Jun 2015 12:07 #5808
by GT 14
Replied by GT 14 on topic 654 Air Cleaner
Nice idea and execution, that should only need 1000 hr. service.
